This tag will allow pimax authorized staff to create a catalog of products.
ie PimaxVR Vision Headsets & Accesories could be a topic. Having first post Reserved for a Table like on OpenMR Guides Repo.
I recommend each product to have a list of links with where to buy. Pic of Product described can be stamped if discontinued. Calvin & Esther ask me about image Annotator.
Ultra-clear VR headset featuring cutting-edge glass aspheric lenses. Prepare for an unparalleled level of immersive virtual reality.
Crystal
| Specifications | Description |
|---|---|
| DISPLAY | QLED + Mini-LED Display |
| Resolution | 2880*2880 pixels per eye |
| Brightness | 200nit |
| Local dimming | 20000:1 |
| Colors | 100% NTSC |
| Motion-to-Photon (MTP) Latency | 15ms |
| Refresh rate | 72Hz/90Hz/120Hz/ (144Hz/160Hz in testing mode) |
| HDR | |
| PC | Minimal |
| — | — |
| CPU | |
| Intel | I 5 12500 |
| AMD | R7 3700x |
| Memory | |
| GPU | |
| NVIDIA | RTX2070 |
| AMD | 6700 |
AUDIO|1. Original off-ear speakers |Optional |2. High-Fidelity DMAS headphones|
||3.5 mm audio jack 1x|
||microphones 3x|
|DIMENSIONS|280.10mm108.20mm135.90mm|
|CONNECTIVITY| Standard Pimax Custom 4.5m DP cable|
|POSITIONAL TRACKING| Inside-out (Standard cover/MR cover)|
| Optional|Outside-in (Lighthouse cover)|
|EYE TRACKING| 120Hz with sub-degree accuracy; 5-dot calibration for foveated rendering|
|BATTERY| 6000mAh replaceable battery + 120mAh inside battery supports hot swap|
|INSIDE CHIPS| Qualcomm Snapdragon XR2|
||Pimax Customized PCVR Engine Dual-processor chips8|
|Storage|256G|
|Supported Modes|VR MODE PCVR| ||Standalone VR|
| PC | Minimal | Recommended |
|---|---|---|
| CPU | ||
| Intel | I5 12500 | |
| AMD | R7 3700x | |
| Memory | ||
| GPU | ||
| NVIDIA | RTX2070 | RTX4090+ |
| AMD | 6700 | 7900+ |
Additional Info
Pimax Download Center
https://pimax.com/wp-content/uploads/2023/10/Crystal-Quick-Guide.pdf
https://pimax.com/wp-content/uploads/2023/10/Crystal-User-Manual.pdf
Kindly be informed that we have updated the power LED light indicators as follows:
| LED | Status |
|---|---|
| Green | Successfully connected! |
| Blue | Idle mode |
| Yellow | Charging |
| White | Fully Charged |
| Red | Out of battery |
Studioform

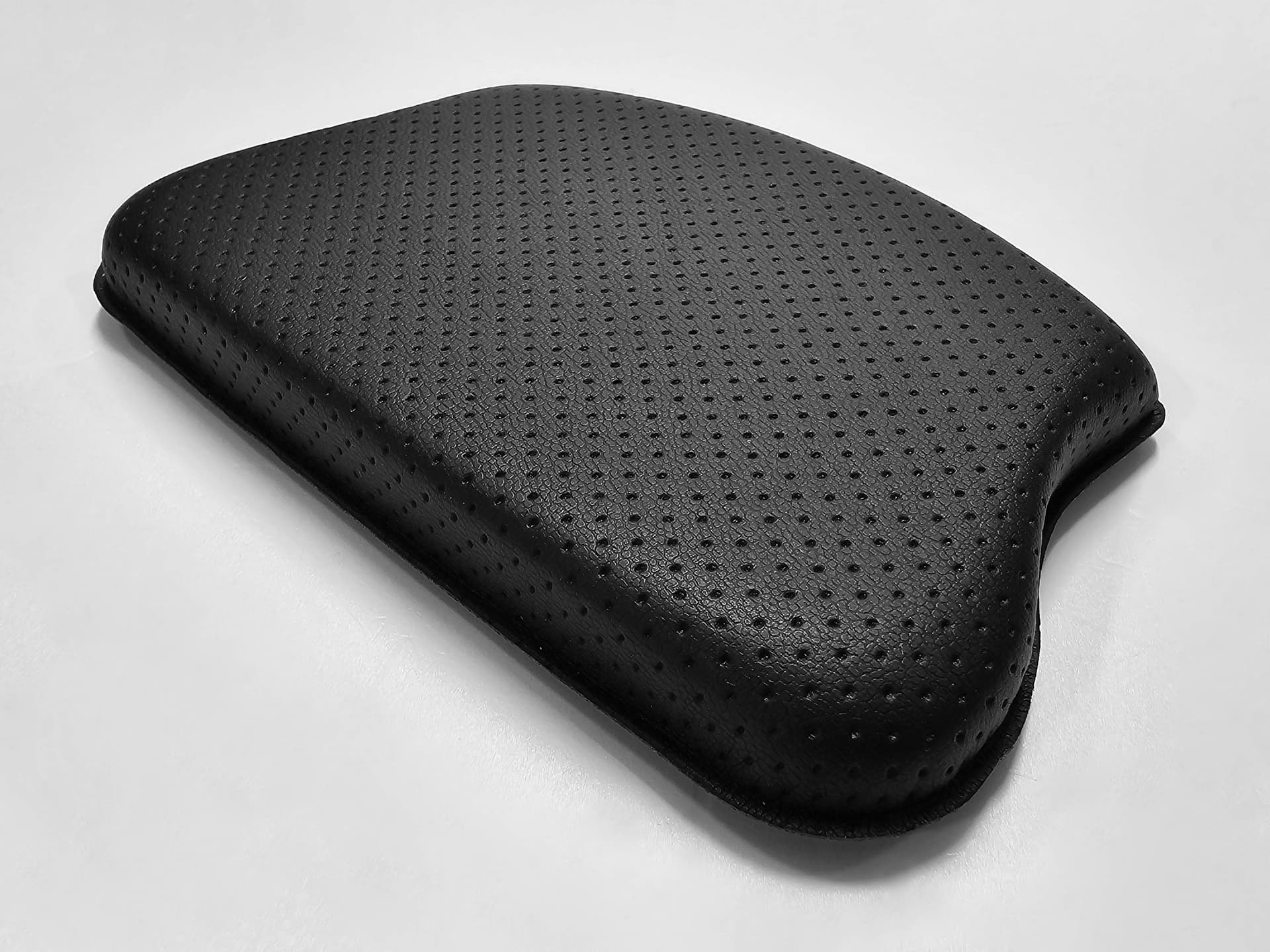

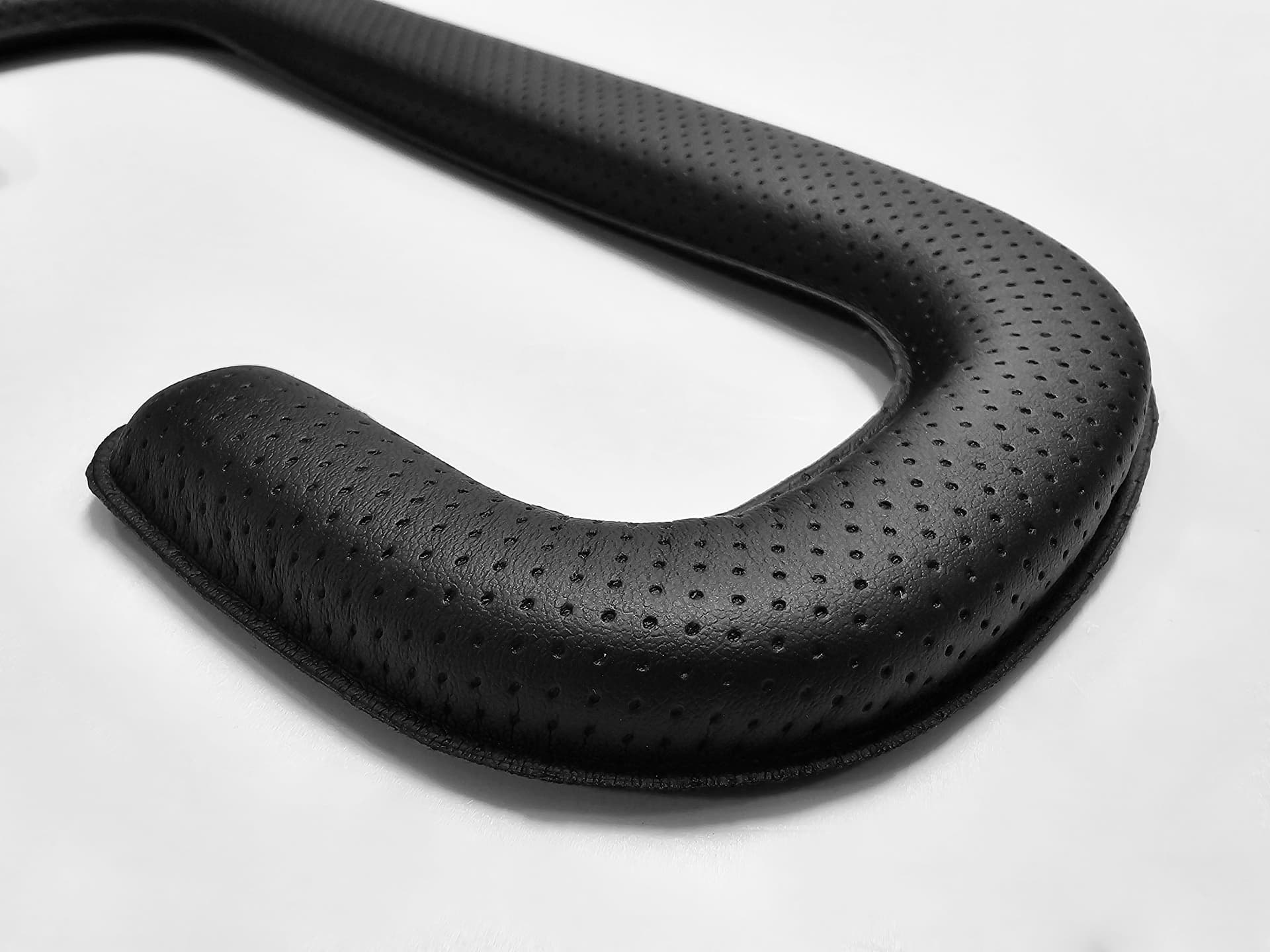

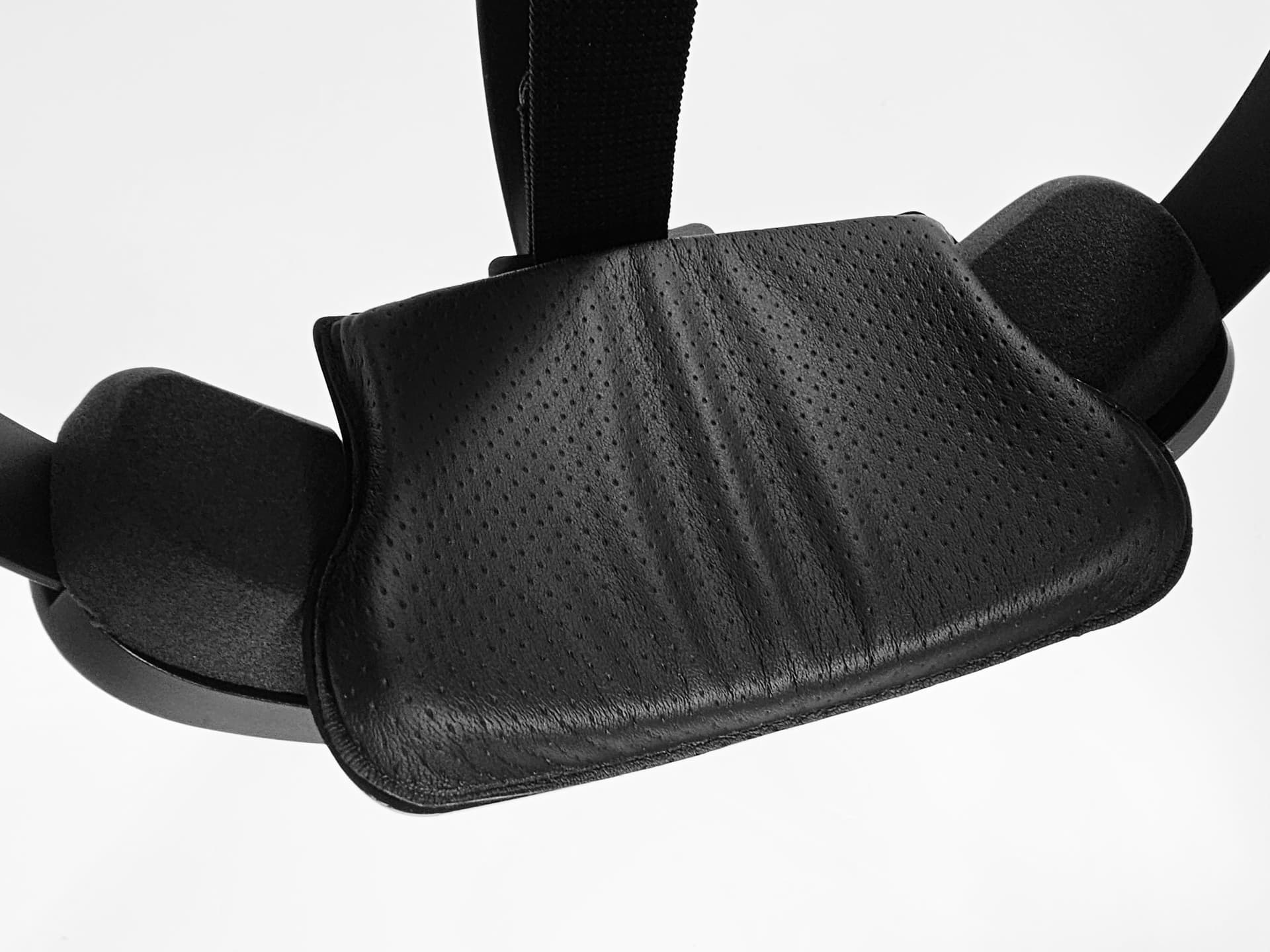

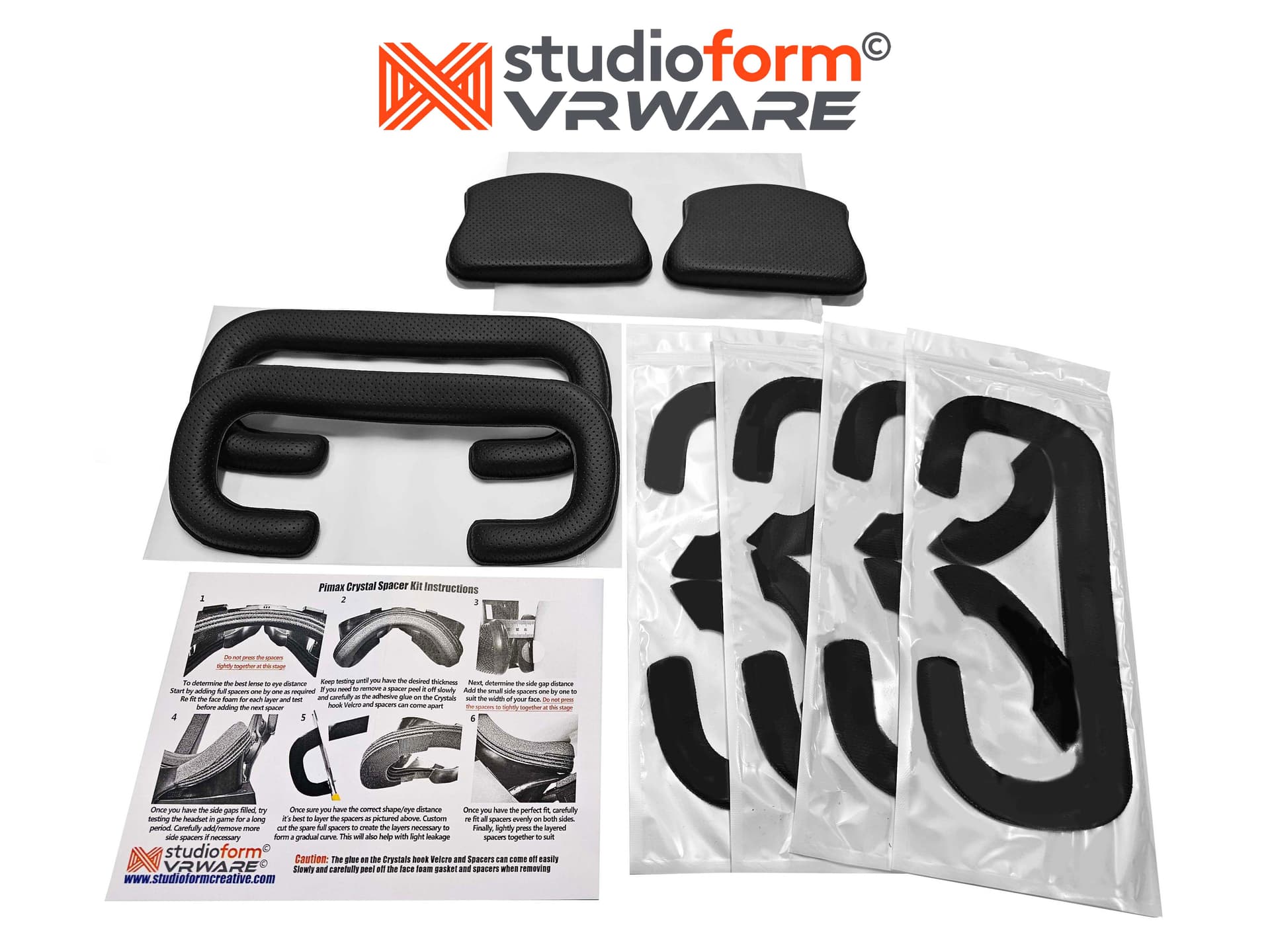

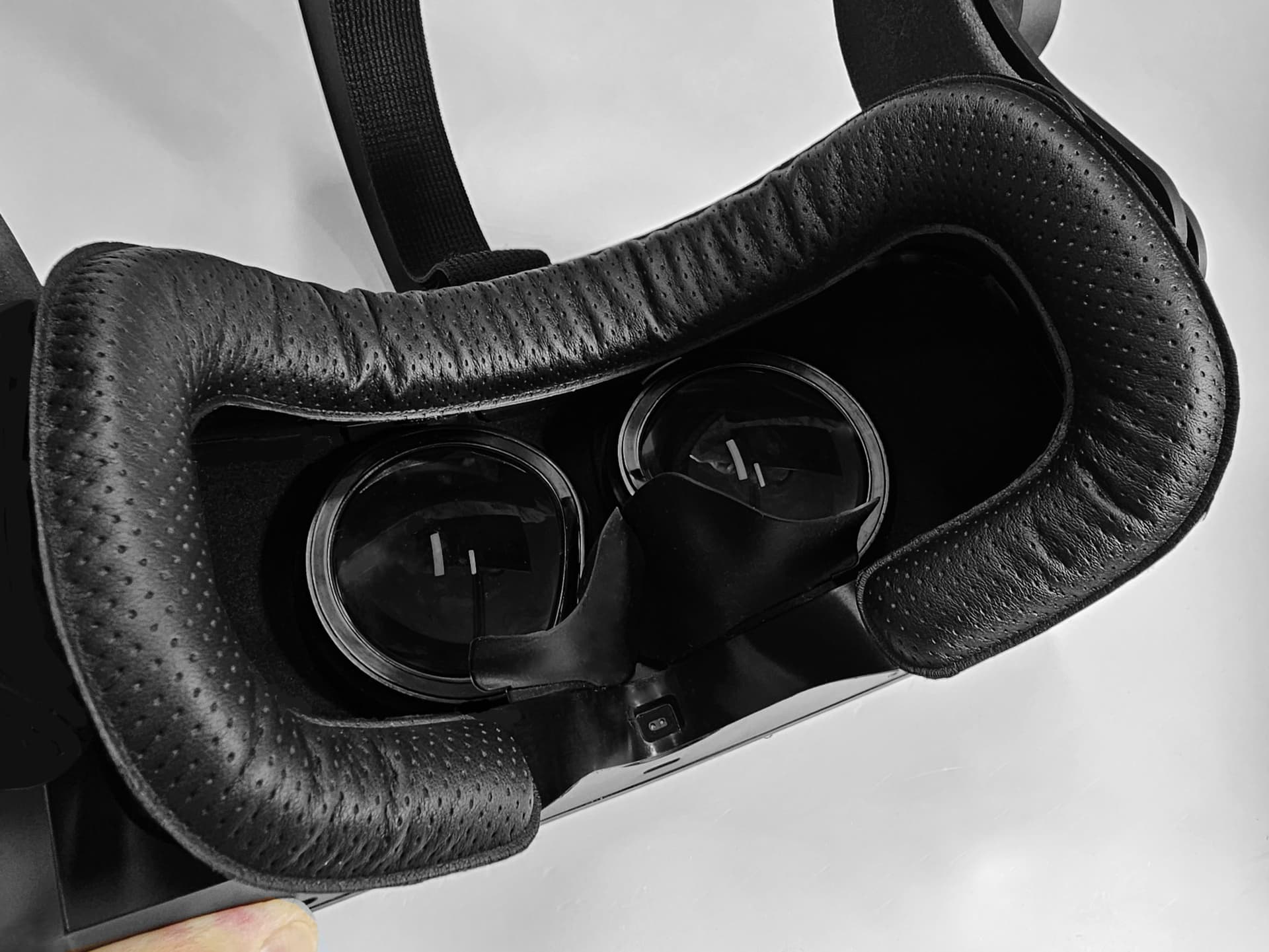

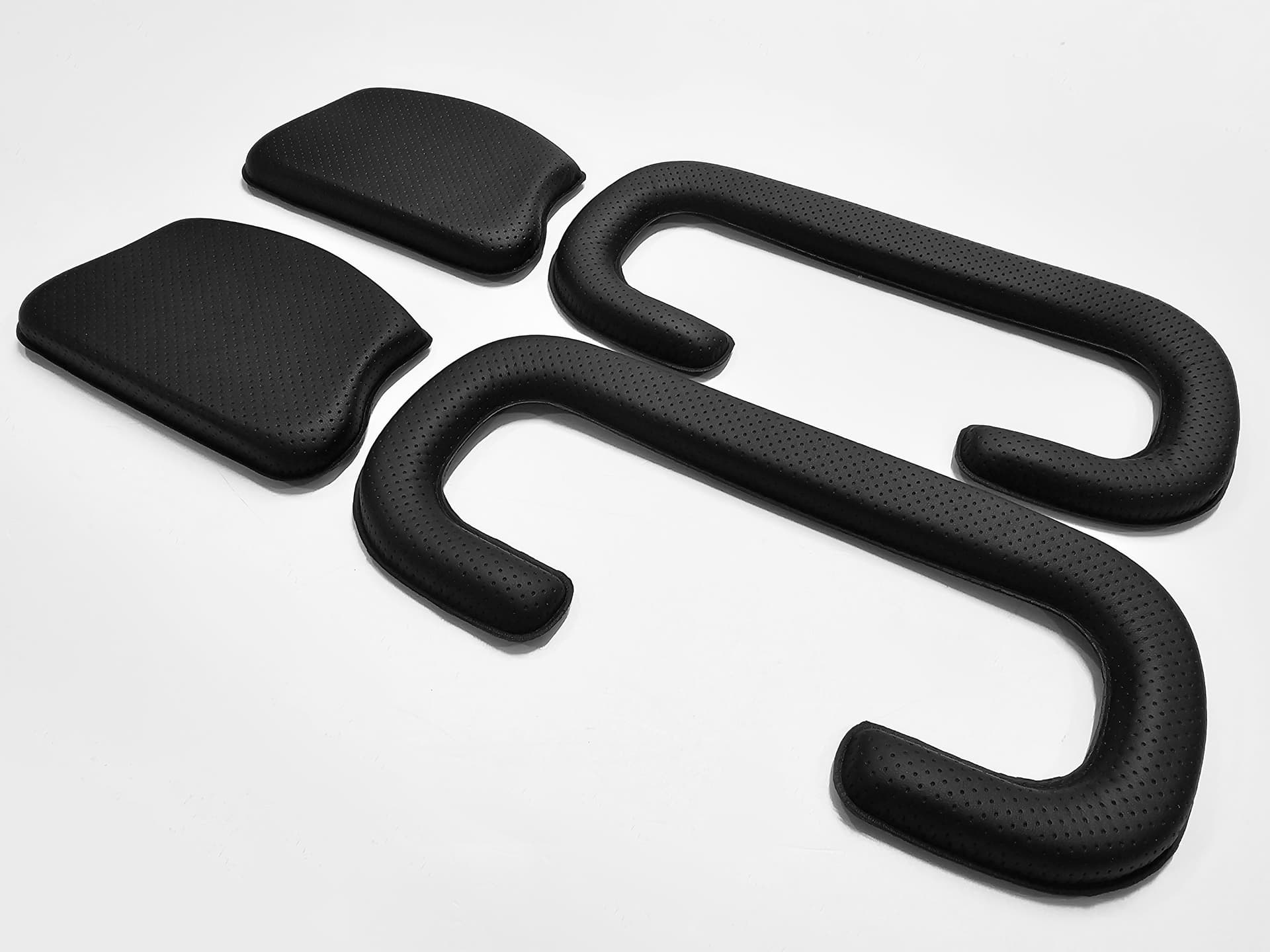

New PU Leather & spacer kit.
